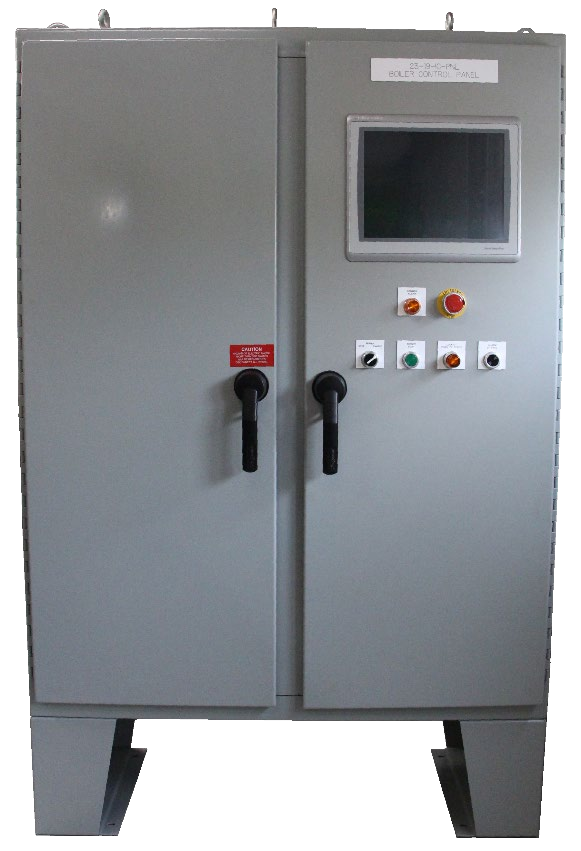

PremierSafe-600 Burner Management System

PremierSafe-600 is a CompactLogix-based burner management control panel for industrial combustion applications. The system is configured around the burner, fuel train, operating requirements, and plant interfaces to support sequencing, permissive and interlock monitoring, operator indications, and shutdown coordination.

Standard base configuration

• Allen-Bradley CompactLogix 5380 controller — 5069-L320ER
• 80 digital inputs (24 VDC), 16 digital outputs (24 VDC), and 16 isolated relay outputs
• 15-inch Allen-Bradley PanelView Plus 7 Performance operator interface
• Nominal 60 × 36-inch NEMA Type 4 painted steel enclosure
• Industrial 24 VDC control power supply and Ethernet communications switch
• Panel engineering, fabrication, controls programming, documentation, and factory testing as defined in the approved scope

Optional configurations

The price shown is for the standard base configuration. Optional upgrades and application-specific changes are available by quotation and will be added to the online configurator in a future phase.

Engineering and quotation

SHC will confirm the application, functional requirements, code and certification scope, device interfaces, site conditions, and option compatibility before issuing a formal quotation. Any required safety integrity level, controller suitability, and system architecture are subject to engineering review; a stated base configuration does not constitute SIL certification or project approval.

Displayed pricing is budgetary, not a binding offer. Freight, taxes, field installation, commissioning, and project-specific additions are excluded unless included in SHC's approved quotation. Orders cannot be placed through this website.

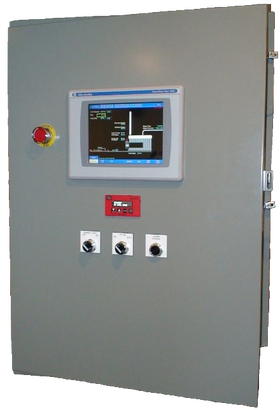

Illustrations show representative SHC equipment; the final enclosure layout and installed components may differ. For a project-specific proposal, contact sales@stanyanhill.com or 603-764-5547.
